Schaller Automation
|
| For over 50 years Schaller Automation's VISATRON® Oil Mist Detector Systems have been protecting large Diesel, Gas and Dual Fuel engines from crankcase explosions. With the extensive experience, accumulated over decades, in developing & improving the product, Schaller Automation is deservedly the market leader in engine crankcase oil mist detection systems.
|
|
|
|
|
|
|

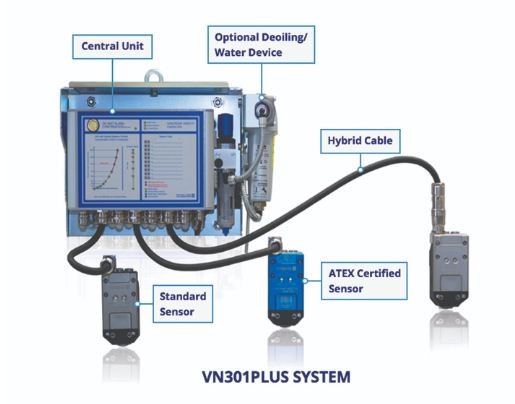

VN301Plus (New) /VN301Plus-EX (New)
New Multi-sensor system oil mist detectors to protect large diesel, gas & dual fuel engines from heavy consequential damage cause by oil mist explosion.
- System with single sensors for each compartment
- Extremely low maintenance cost - designed for engine lifetime
- Quick reaction time
- No false Alarms
- Easy installation
- Suitable for compact engine layouts
- Power/Air supply via hybrid cable, plu & play connection to sensors
- Active dirt protection of optics by clean air - no false alarms
- Automatic opacity adaptation to engine in normal operation - False Alarm-free system even under frequent changes in engine load and rpm
|
|
|
|
|
|
|
|
|
|

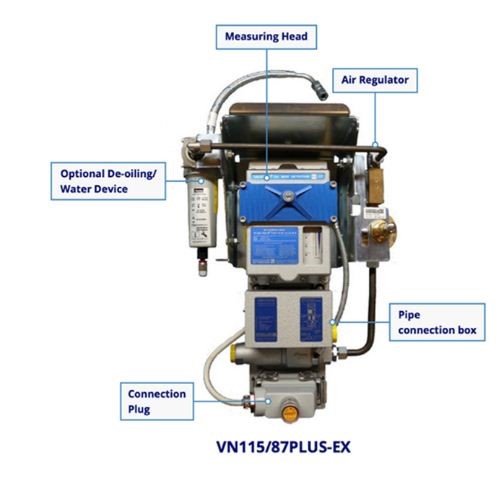

VN115/87Plus-EX (New)
The VISATRON® series VN87plusEX OMD-system uses the approved wear-free suction system to continuously extract the atmosphere of the crankcase compartments and other engine locations. A piping system is used to continuously draw the atmosphere to measure the oil mist level in the engine.
- Piping system to each compartment & other engine locations
- VN115/87plusEX uses a header pipe sampling system to extract the engine crankcase atmosphere without air heating system
- Automatic opacity adaptation to engine in normal operation
- Extremely low maintenance cost - designed for engine lifetime
- Active dirt protection of optics by fresh air chambers
- Designed for vibrations beyond classification rules
- Class approval of 11 classification societies
- The VN115/87plusEX is approved for work and use in potentially explosive atmospheres and is compliant to ATEX 2014/34/EU
|
|
|
|
|
|

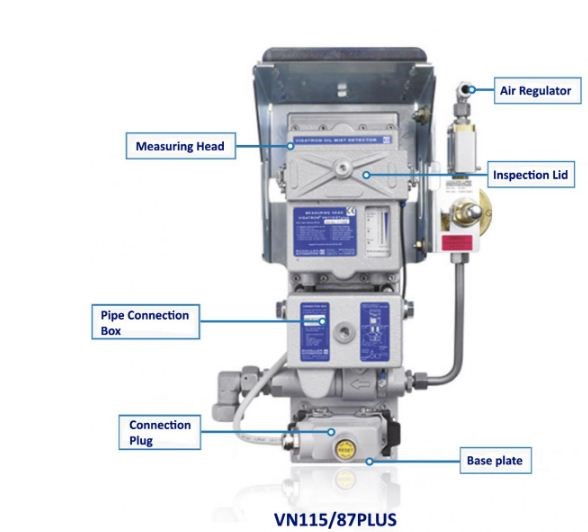

VN115/87Plus
The VISATRON® series VN87plus OMD-system uses the approved wear-free suction system to continuously extract the atmosphere of the crankcase compartments and other engine locations. A piping system is used to continuously draw the atmosphere to measure the oil mist level in the engine.
- Piping system to each compartment & other engine locations
- VN115/87plus & VN116/87plus uses a header pipe sampling system to extract the engine crankcase atmosphere
- Automatic opacity adaptation to engine in normal operation
- Extremely low maintenance cost - designed for engine lifetime
- Active dirt protection of optics by fresh air chambers
- Designed for vibrations beyond classification rules
- Class approval of 11 classification societies
|
|
|
|
|
|
|
|
|
|

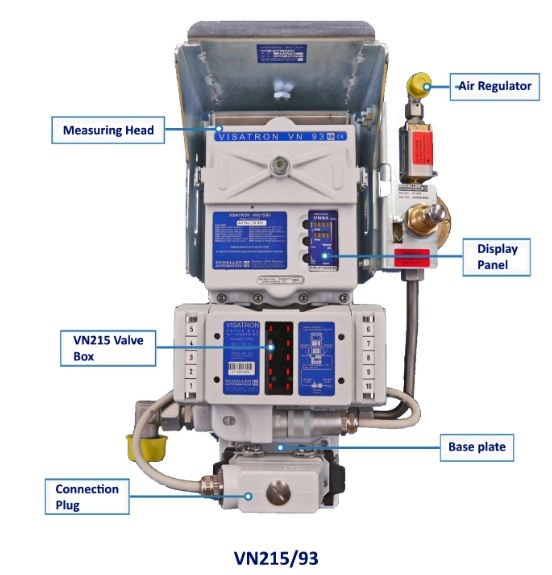

VN93
The VISATRON® series VN93 OMD-system uses the approved wear-free suction system to continuously extract the atmosphere of the crankcase compartments and other engine locations. A piping system is used to continuously draw the atmosphere to measure the oil mist level in the engine.
- Piping system to each compartment & other engine locations
- VN215/93 uses individual compartment suction pipe to extract the individual compartment's atmosphere
- Automatic opacity adaptation to engine in normal operation
- Extremely low maintenance cost - designed for engine lifetime
- Active dirt protection of optics by fresh air chambers
- Designed for vibrations beyond classification rules
- Class approval of 11 classification societies
- The alphanumeric display panel offers a user interface to display and adjust some parameters
|
|
